3 zone ride wiring?

[Ronyd]

I just realized something how i'm accustomed Roland wiring while looking t the wiring section of the manual and using Roland Modules.

So now with edrumin modules I need to revise my wiring.

First off, I'm using a Zildjian L80 low volume cymbal.

Questions:
1. i should be use pad type Metal? If correct: see attached drawing:
a. wire the bell as described (Metal) for the bell piezo and jack.
b. The bow and choke wired Roland Piezo / Switch Pad.

[Rob]

Yes, use the Metal Cymbal pad type.

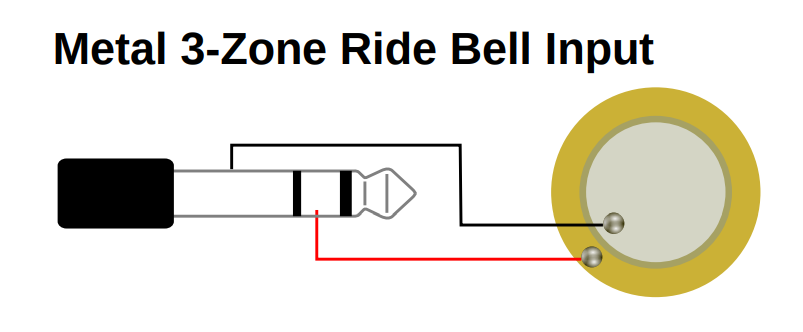

The Bell peizo should be connected to the ring of the second TRS, not the tip. The polarity doesn't matter though.


eDRUMin - Wiring Diagrams

[Ronyd]

Geeez, i even had the pic up while i sketched my drawing . Thankx again rob
