Splitting Mono Pads Issue

Post by KSJM89 »

Hi all,

Trying to split channel 1 & 2 with Bass Drum & FT then High and Mid rack Tom's respectively, I have selected the Mono dual option and then set the Bass drum and Floor Tom and respective for rack Tom's.

I seem to get the same hits... using a stereo TRS split cable with Drum Tec TRs cables so that eliminates that, unless I need a stereo input to mono outputs? If it's not that could it be mapping? Although I don't think it could be?

Anyone had this issue or can help?

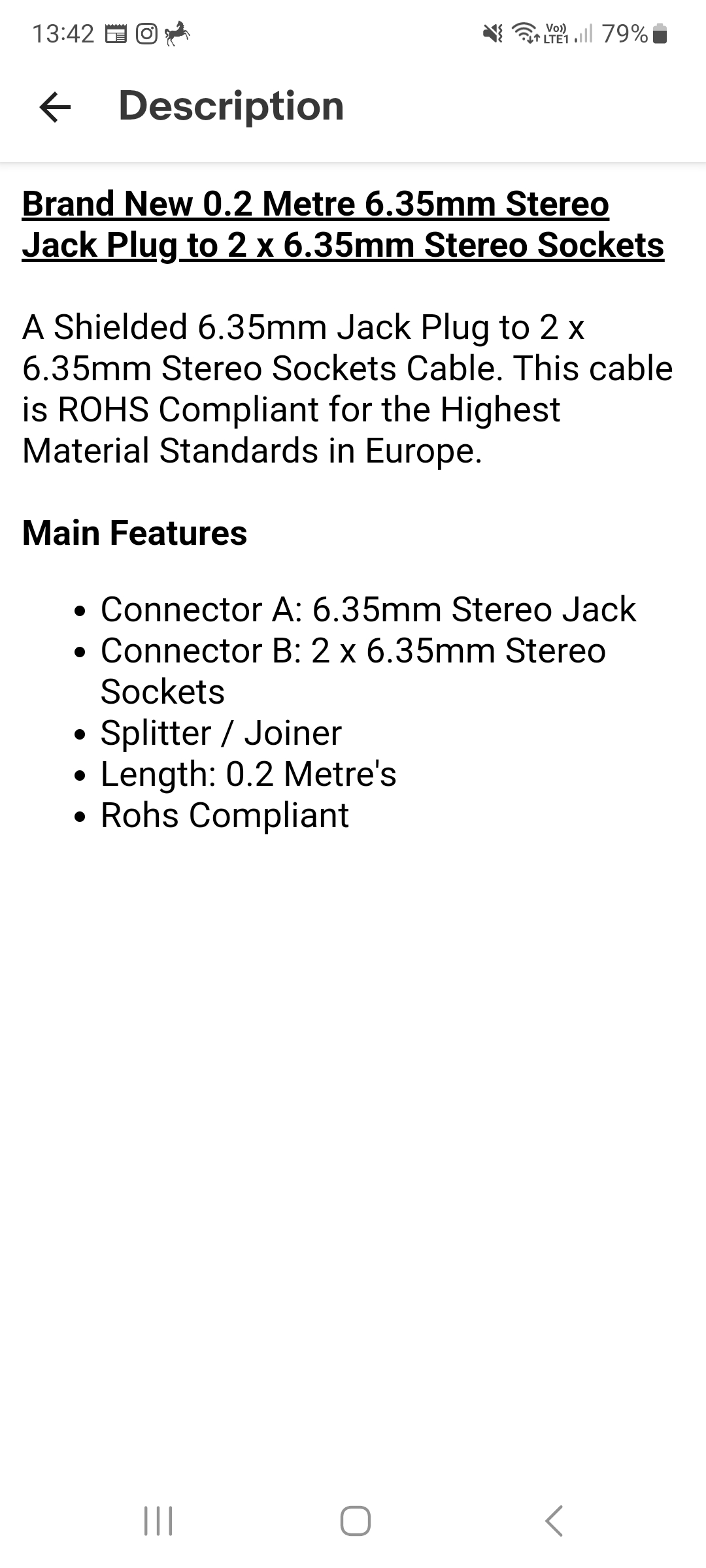

Added a screen shot of the cable I'm using to clarify.

Cheers

Kyle
Attachments
KSJM89
Posts: 36
Joined: Sat Aug 14, 2021 12:19 pm

Re: Splitting Mono Pads Issue

Post by KSJM89 »

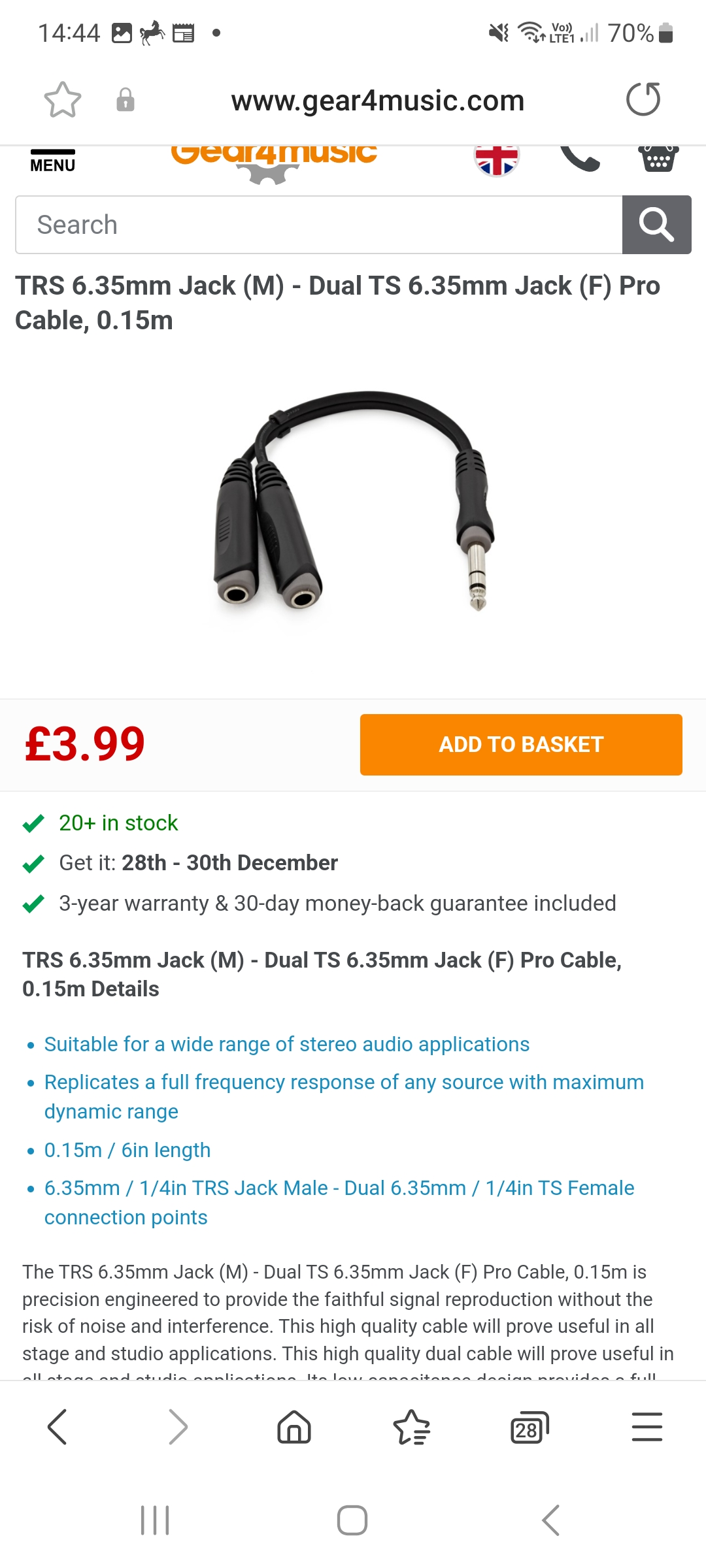

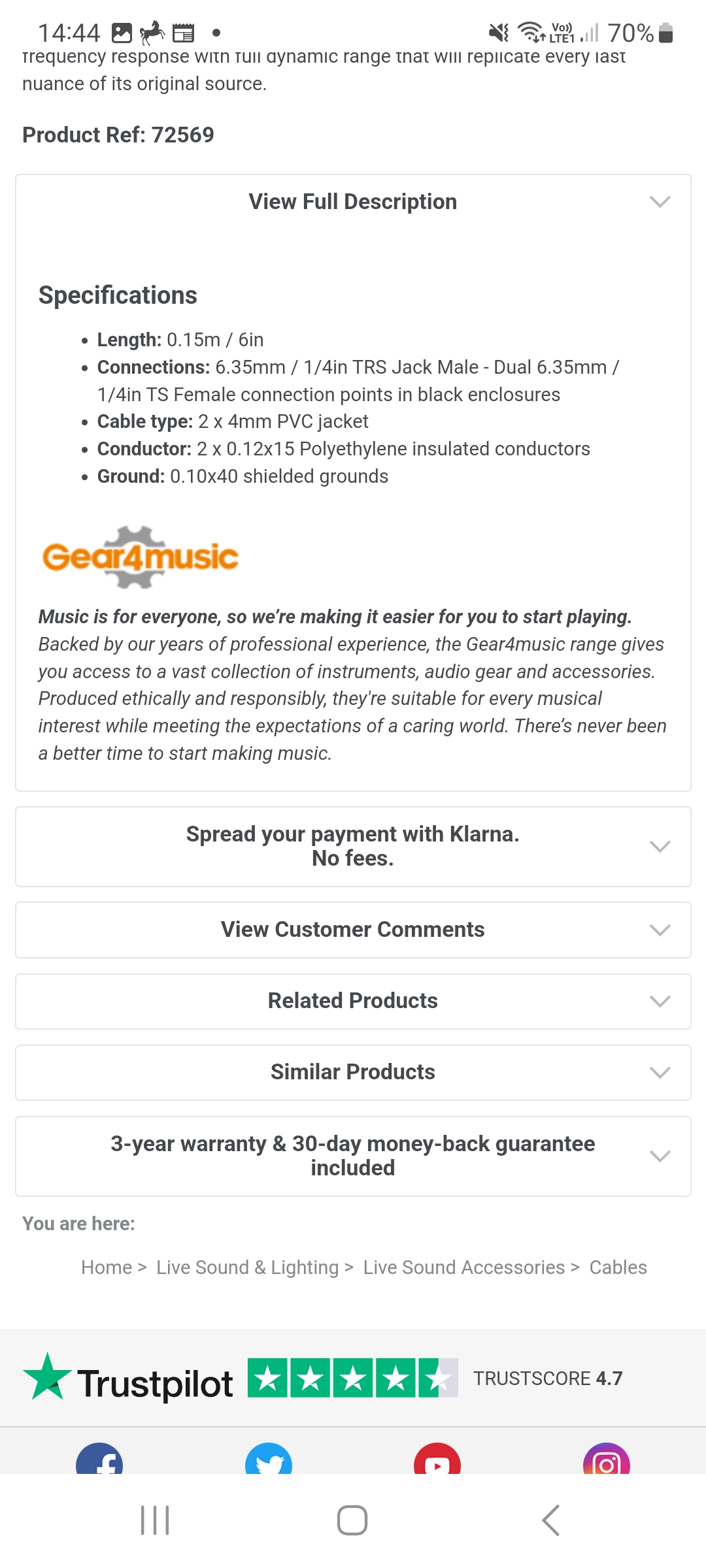

Would these suit better as it seems I may have the wrong cables....
Attachments
Screenshot_20221221_144446_Samsung Internet.jpg
Screenshot_20221221_144446_Samsung Internet.jpg (491.92 KiB) Viewed 915 times
Screenshot_20221221_144438_Samsung Internet.jpg
Screenshot_20221221_144438_Samsung Internet.jpg (509.33 KiB) Viewed 915 times
User avatar
Rob
Site Admin
Posts: 4660
Joined: Sat Aug 01, 2009 2:04 pm

Re: Splitting Mono Pads Issue

Post by Rob »

Yup, the second link seems to be the right kind of splitter. You want stereo (TRS) to dual mono (TS).
KSJM89
Posts: 36
Joined: Sat Aug 14, 2021 12:19 pm

Re: Splitting Mono Pads Issue

Post by KSJM89 »

Rob,

Amazing thank you, was going bloody mad, my own fault I just assumed TRS each way :D

Merry Christmas my dude!
