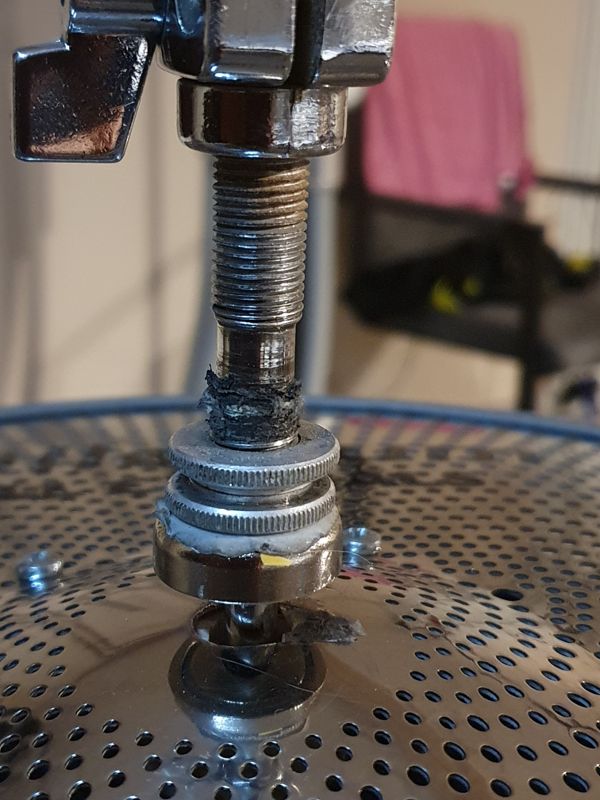

Magnet glued to the clutch Works great

So, did it today. Indeed, easy to build. I copied the ddrum4-design, where the sensor is fixed at the pad and the Magnet is mounted like a clutch. Woodbase with sensor, to be mounted under the cymbal 20210314_124857_edited.jpeg Woodbase side view 20210314_125023_edited.jpeg Hihat-Cymbal with cutout ...

Yep ... above my abilities too.
I will go for the 2 cable version.

But I thought, I leave the link here for Information and for the more capable guys.

Cheers, Frank

Ok, so that is a clear "No" to my question :D Thanks for the additional Info. Much clearer now... Cheers, Frank Good stuff. Yeah, a 'No' seemed a bit abrupt and not very useful! Let me know if you have any further questions. Hey, are you aware of this Keith Raper circuit thread at the VDr...

Ok, so that is a clear "No" to my question

Thanks for the additional Info. Much clearer now...

Cheers, Frank

I think, my brain is blocked. I've read through several posts, but I'm still not clear on the how-to If I want to build a 3-zone ride, would it work with one TRS Jack cable, placing a piezo under the bow, a second under the bell and a myrk membrane on the edge? I use LV cymbals but also saw Rob's co...

Hi Tom, looks like you already paid a lot attention to details.

Very well done.

Hi, I like the idea and your Design. Looks user-friendly and pretty easy to install. Not sure, how they perform, but I'm sure, the eDrumin will handle it pretty well. Have you tested already, how a piezo would work on the Bar for picking up Rim signals? I mean, they are not that difficult to install...

I was delivered ed4 time ago without any custom fee, later then the ed10 with payment of fee needed.

But delivery in both cases was pretty fast.

Cool. Looks good... Thanks for sharing... haven't noticed that type of pedal sensor before. I use one of this, made by drone triggers in the UK, it's an optical controller with reflection plate and works perfectly with my diy cymbal. https://www.ebay.co.uk/itm/Optical-Hi-Hat-controller-for-use-with-...
