Field 3-zone Ride

[Coach]

Any tips for getting a Field 3-zone Ride to work? It’s got two outputs: bow/edge, bell. Every config I try for a stereo bow/edge input in edrummin says Compatibility Issue. Advice?

[MWJT42]

Sounds like the Roland wiring setup.
If it's Bow (piezo) / edge (switch) on a stereo jack
And bell (piezo) on the right side of a stereo jack, it will just plug and play.

Have you tried setting it up as a 2 zone first, and ignoring the bell?

Also, I had constant compatibility issues as the switch was short on my DIY cymbal - might be worth checking.

[Mylo]

The Field is interesting in that they physically separate the bell from the rest of the cymbal essentially giving you two cymbals. The only way I got it to work was to use two inputs. One for the bow/edge and one for the bell.

viewtopic.php?f=29&t=525

That thread my not apply if you have the newer one with an A-B switch.

[Rob]

Are you using the 3 zone 'Metal' Cymbal preset?

[Coach]

Are you using the 3 zone 'Metal' Cymbal preset?

Yes, I tried that with no luck. Going to try the suggestion above in the meantime.

[Coach]

Actually, I can’t even get the suggestion from the other thread to work. Using any cymbal type with a stereo input says “Compatibly Issue”.

[thenewdrummer]

Actually, I can’t even get the suggestion from the other thread to work. Using any cymbal type with a stereo input says “Compatibly Issue”.

Can you test if you have a short?

[Rob]

I would say either there's a short somewhere in your bow/edge connection, or Field is doing something different with the edge switch. Do you have a link to that cymbal?

[Coach]

I would say either there's a short somewhere in your bow/edge connection, or Field is doing something different with the edge switch. Do you have a link to that cymbal?

https://fieldelectronicdrums.com/?produ ... ide-3-zone

[Rob]

Wow. Their market machine is cranked up to 11. There are a lot of TM's in their description, so I think it's highly likely that they are doing something non-standard.

There's a way to disable the compatibility check.

1. Go to the firmware update page.

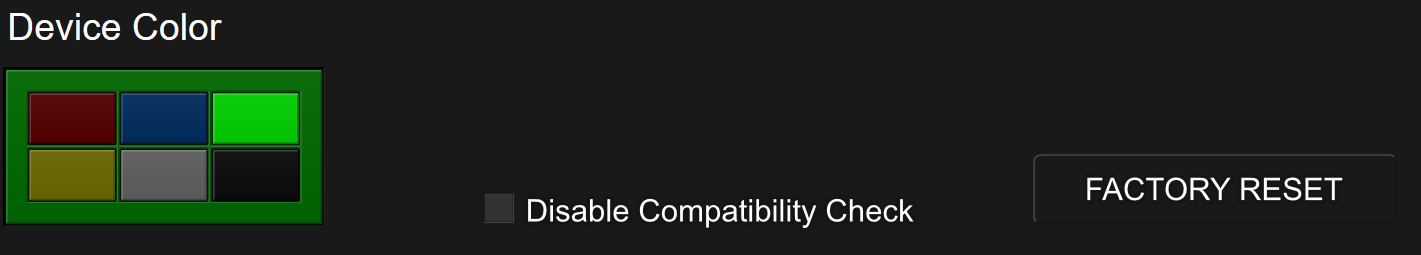

2. The checkbox in the image below is normally hidden. Alt-Shift-Click it and it'll become visible.
